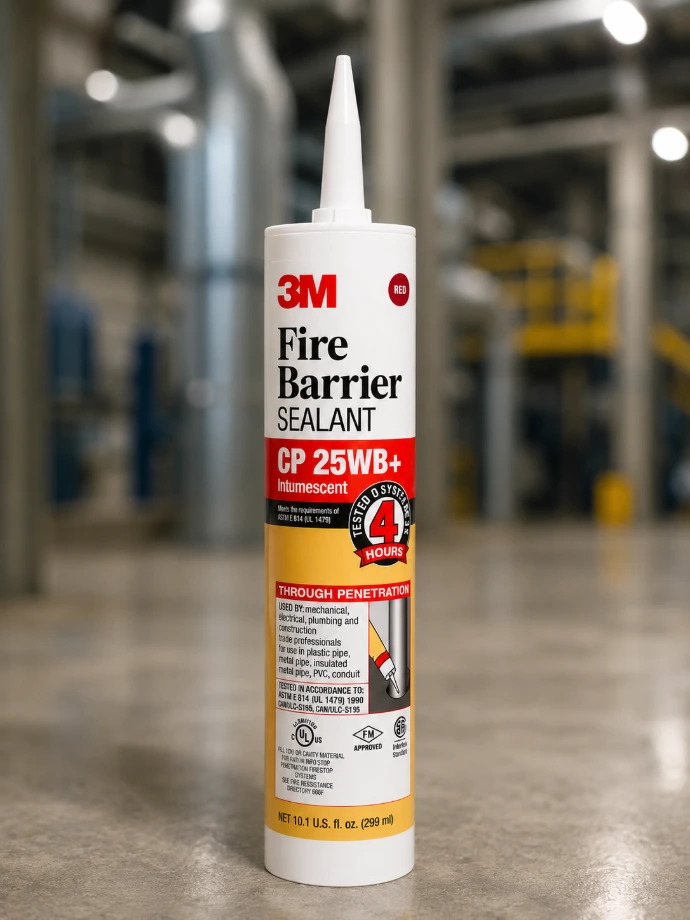

3M FIRE BARRIER CP 25WB+ SEALANT
3M FIRE BARRIER CP 25WB+
Advanced Intumescent 3M Firestop Sealant
- The 3M™ Fire Barrier CP 25WB+ Sealant is a premium-grade, elastomeric latex-based firestop caulk engineered to provide robust protection against the spread of fire, smoke, moisture, and noxious gases.
-
- This high-performance sealant features advanced intumescent properties, meaning it dynamically expands when exposed to intense heat. As combustible items like cable insulation are consumed by fire, the sealant expands to fill the void, maintaining a tight, uncompromising penetration seal.
-
- Formulated for easy application and longevity, CP 25WB+ is a halogen-free, thixotropic caulk that delivers superior adhesion without sagging, making it ideal for both vertical and overhead installations.
-
- Ready to use with standard architectural tools, it provides up to a 4-hour fire resistance rating to help protect property and safeguard lives.
Key Features
High Fire Resistance Rating
Achieves up to a 4-hour fire rating to meet stringent commercial building codes.
Advanced Intumescent Property
Expands dynamically under heat to seal gaps left by burned-away cable jacketing and insulation.
Endothermic Thermal Barrier
Actively absorbs heat energy and releases chemically bound water to cool surrounding surfaces.
Thixotropic (No-Sag) Formula
High-viscosity paste that will not sag, drip, or run, ensuring clean overhead and vertical applications.
Water-Based & Easy Clean-Up
Requires no special handling or complex cleanup; excess material washes away easily with water and allows for routine disposal.
Fast-Drying & Paintable
Becomes tack-free in approximately 10 to 15 minutes and can be painted over after a full 72-hour cure.
High Caulk Rate
Engineered for rapid application with a high flow rate of 1000 g/min using a 6mm (1/4") nozzle.
Eco-Conscious Formula
Halogen-free composition with minimal shrinkage and a distinct reddish-brown color for quick inspection and verification.
Integrated Water Seal
Provides immediate waterproof protection against spills and moisture, even in normal conditions.
Technical Specifications
| Property / Specification | Value / Detail |
| Color | Red |
Application Temperature Range(ASTM C 1299) | 40° to 122°F (4° to 50°C) |
| Service Temperature Range | -20° to 180°F (-28° to 82°C) |
STC Acoustic Barrier | 54 when tested in STC 54 rated wall assembly |
Surface Burning(ASTM E 84) | Flame Spread: 0 Smoke Development: 0 |
| Hardness (ASTM D240 Shore A) | 45 |
| Tensile Strength | 85 psi (0.59 MPa) |
| Volume Shrinkage (ASTM C 1241) | 28% |
| VOC Less H2O and Exempt Solvents* | <1 g/L |
Drying Times (Under typical conditions of 75°F (23°C) and 50% relative humidity) | Tack-free: ~10 minutesDry-to-touch: 30–60 minutesFull dry: Depends on ambient conditions and sealant volume. Typical dry rate is approx. 1/8-inch (3mm) per day. |
| Unit Volume | 10.1 fl. oz. tube (300mL), 20 fl. oz. sausage (591 mL), 4.5-gallon pail (17 L) |
*Meets the intent of LEED® VOC environmental quality requirements
Applications
Wrapping and sealing metal or plastic piping systems passing through fire barriers.
Serving as a reliable smoke, toxic gas, and moisture barrier in critical commercial, industrial, and residential construction joints.
Sealing blank openings and through-penetrations in fire-rated walls, floors, and ceilings.
