BAND-IT BALL-LOK TOOL
The BAND-IT Ball-Lok Tool is a premium-quality BAND-IT tool designed for the fast, secure, and consistent installation of BAND-IT Ball-Lok Cable Ties. It provides accurate tensioning while automatically locking and cutting excess material for a clean, professional finish.
As a trusted BAND-IT supplier in Saudi Arabia, Arabian Arrow offers genuine premium-quality BAND-IT tools that deliver reliable performance, durability, and efficient installation for oil & gas, marine, construction, utilities, telecommunications, and other industrial applications.
- Premium-quality BAND-IT Ball-Lok installation tool
- Designed for BAND-IT Ball-Lok Cable Ties
- Automatically locks, tensions, and cuts excess material
- Durable, ergonomic design for comfortable operation
- Delivers fast, secure, and professional installations
- Available from Arabian Arrow, a trusted BAND-IT
- supplier in Saudi Arabia

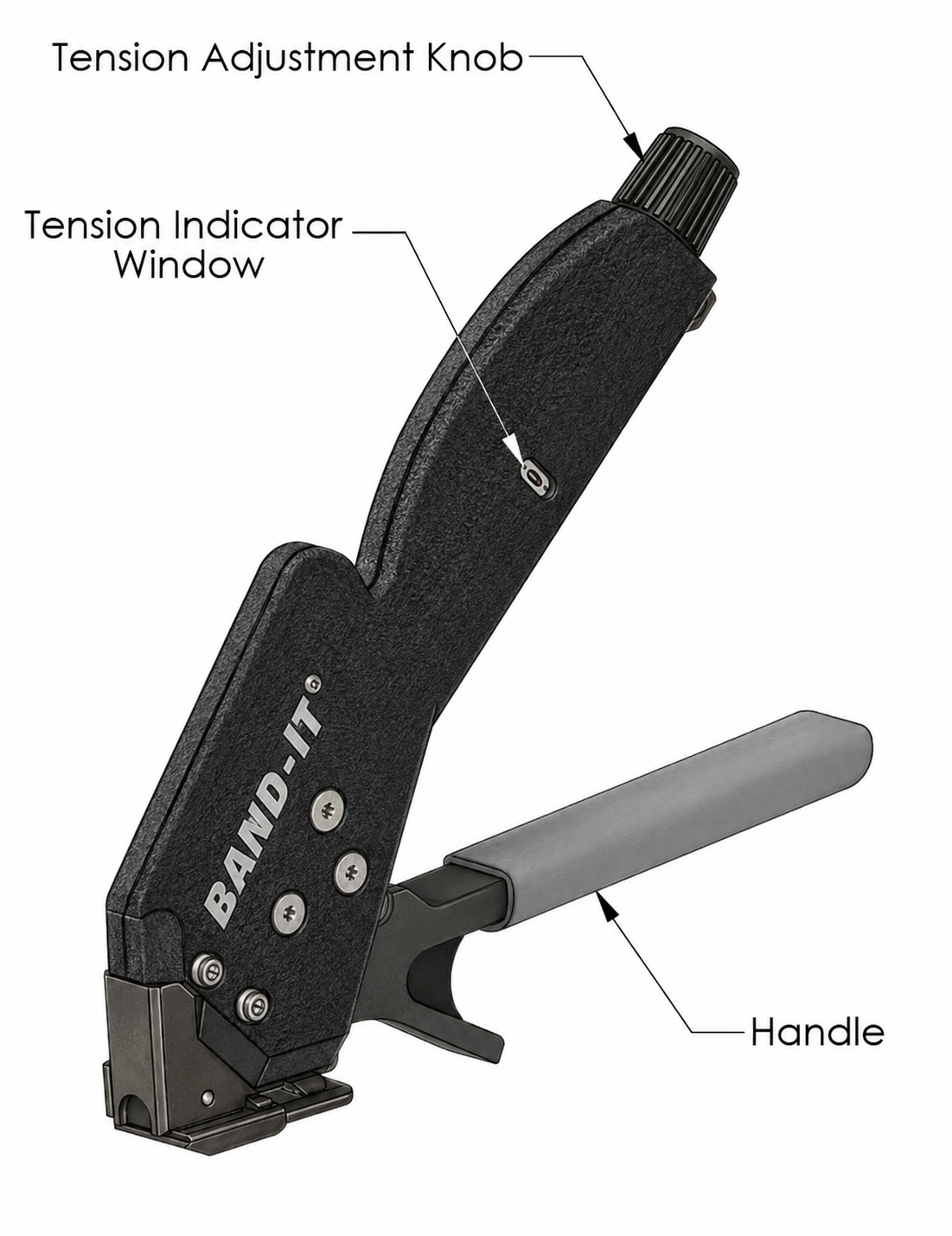

Ball-lok Tool Diagram
Key Features
Fast & Efficient Installation
- Designed specifically for BAND-IT® Ball-Lok® Cable Ties.
- Speeds up cable tie installation while ensuring consistent results.
Automatic Locking & Cutting
- Tightens the cable tie securely.
- Automatically cuts excess material for a clean finish.
Consistent Tension
- Provides uniform tension for reliable fastening.
- Helps reduce installation errors and rework.
Durable Construction
- Built for demanding industrial environments.
- Designed for long service life and dependable performance.
Ergonomic Design
- Comfortable grip for improved handling.
- Reduces user fatigue during extended installation work.
Professional Finish
- Produces neat, secure, and repeatable installations.
- Ideal for safety-critical and permanent fastening applications.
Primary Uses of Ball-Lok Tool
Cable Tie Installation
Designed for fast and secure installation of BAND-IT® Ball-Lok® stainless steel cable ties.
Equipment Fastening
Mounts identification tags, signs, and equipment to poles and structures.
Maintenance & Repair
Perfect for industrial maintenance, repair, and heavy-duty fastening applications.
Blade Installation Procedure
Tools Required:
Hex Keys: 1/16", 7/64"
Parts May Be Required:
Blade: K93987
Cap Screw: M54587
Set Screw: A02887
Special Instructions:
It is critical the knife and blade be assembled with a zero-gap to ensure clean cut-off. Once correctly positioned, use threadlocking compound to prevent parts from shifting during use (allow sufficient time for compound to cure).

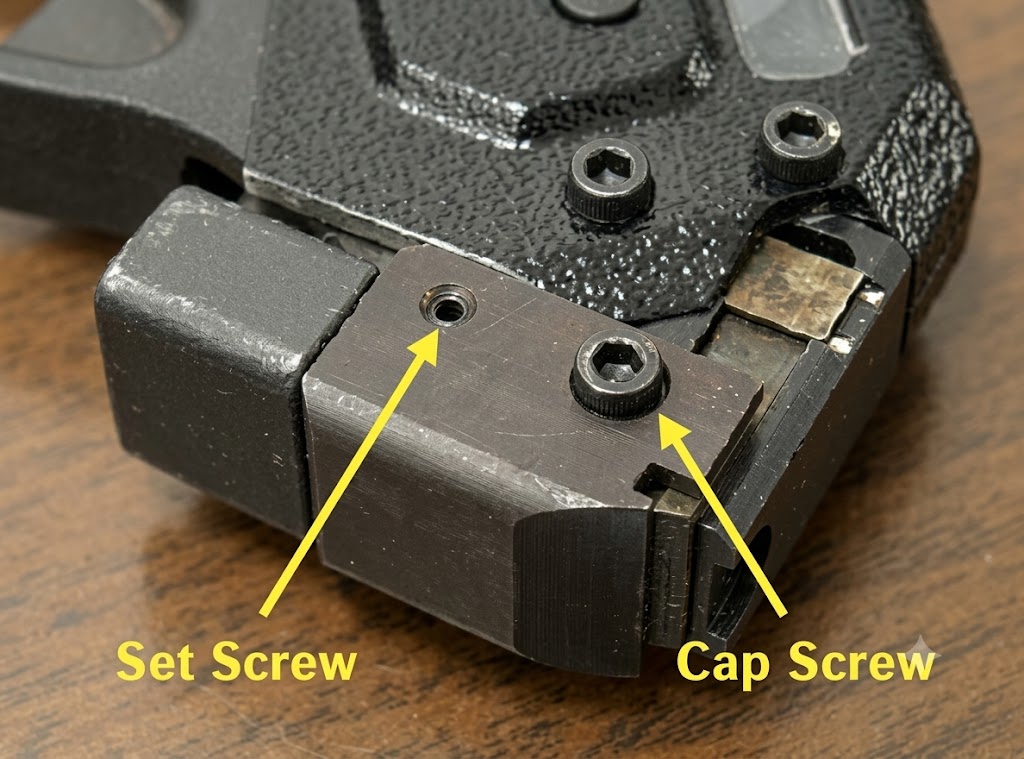

Figure 1
Figure 1
1. Set the tool tension to -0-.
2. Back-out set screw (M54587) and cap screw (A02887) - Figure 1.

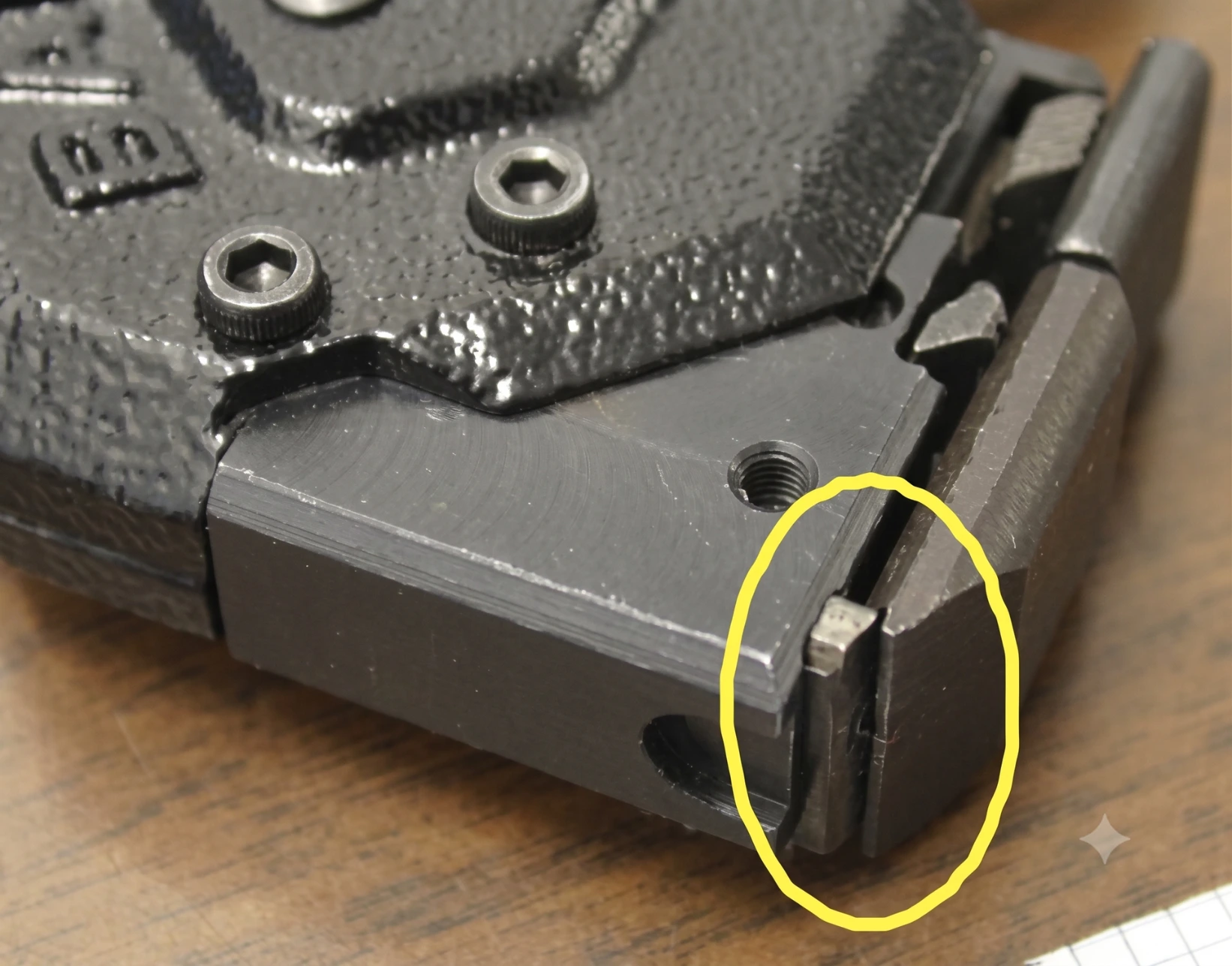

Figure 3
4.Squeeze the handle completely and firmly strike the tension lever against a non-metal surface to actuate the knife - Figure 2 (note: you may also press firmly on the tension lever to actuate the knife - Figure 3).

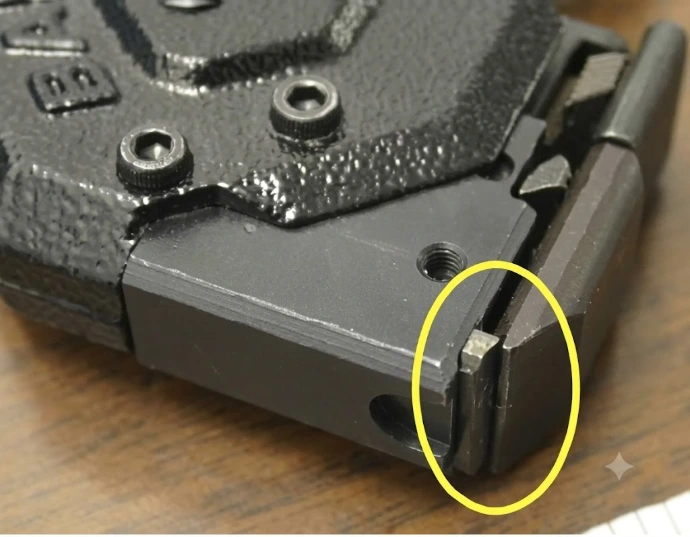

Figure 4
5.The knife is now in the downward position

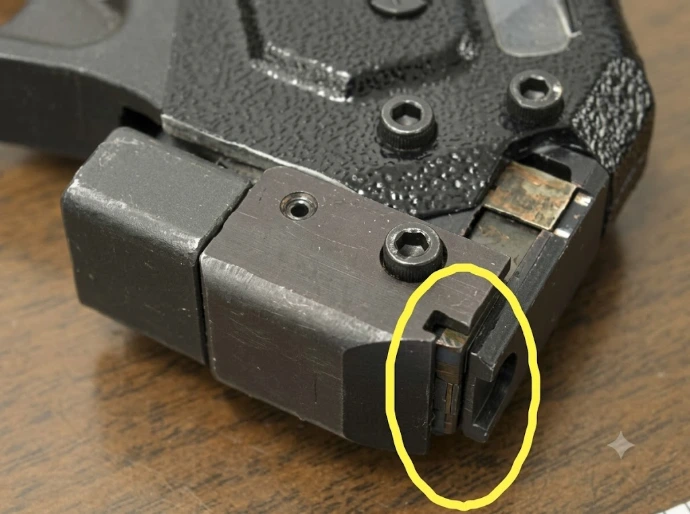

Figure 5
6.Open the tension handle slightly so that the knife retracts from its full stroke; it should be overlapping the blade edge - Figure 5.

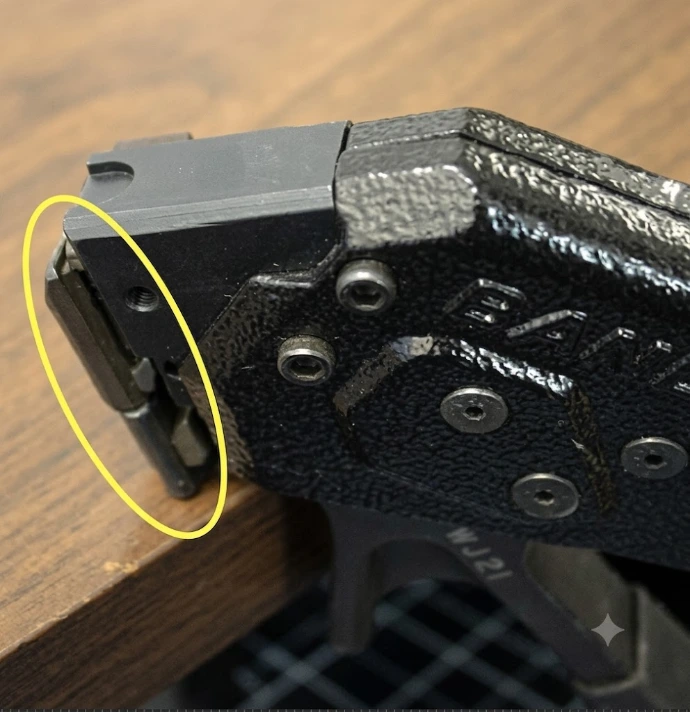

Figure 6
7.Using the edge of a table or bench, force the tension lever against the blade. This will force the blade against the knife and ensure a zero-gap - Figure 6.
8.Tighten the cap screw 1/2 turn past snug.
9.Tighten the set screw 1/2 turn past snug.

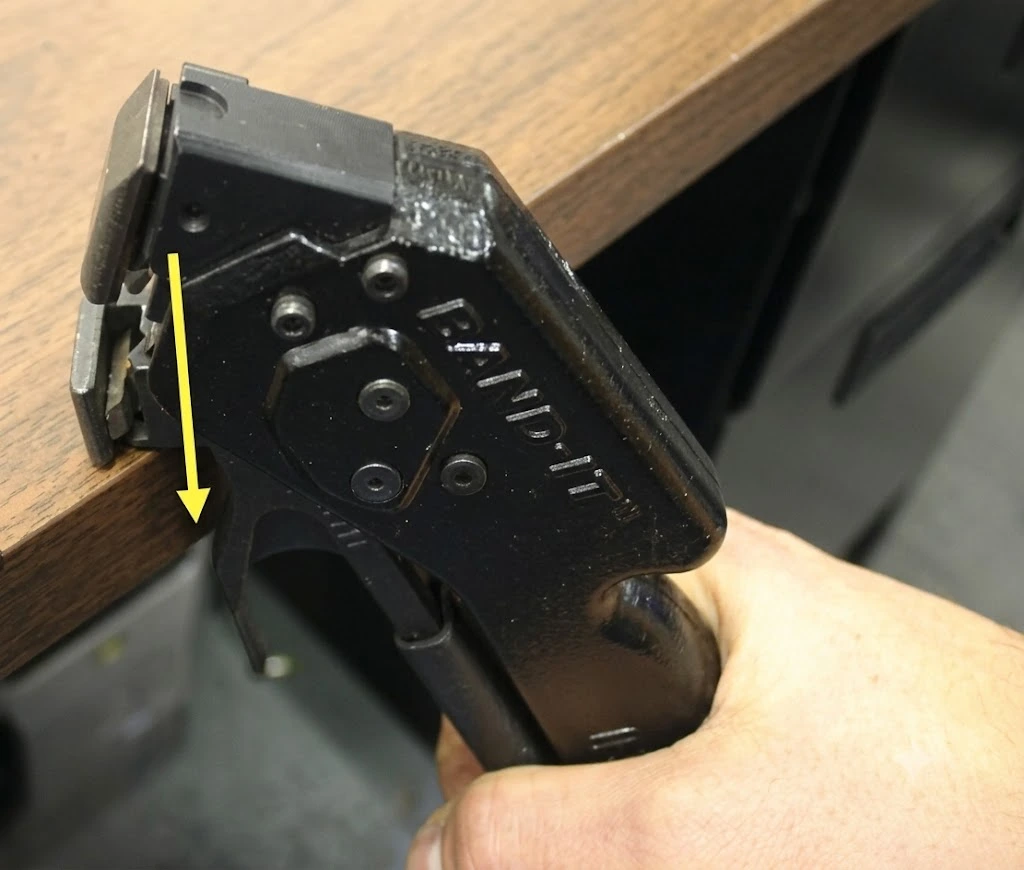

Figure 2
3.Reposition/replace blade, but do not fully tighten screws yet.
