BAND-IT SCRU-LOKT BUCKLE
Scru-Lokt Buckle Stainless Steel in Saudi Arabia | BAND-IT

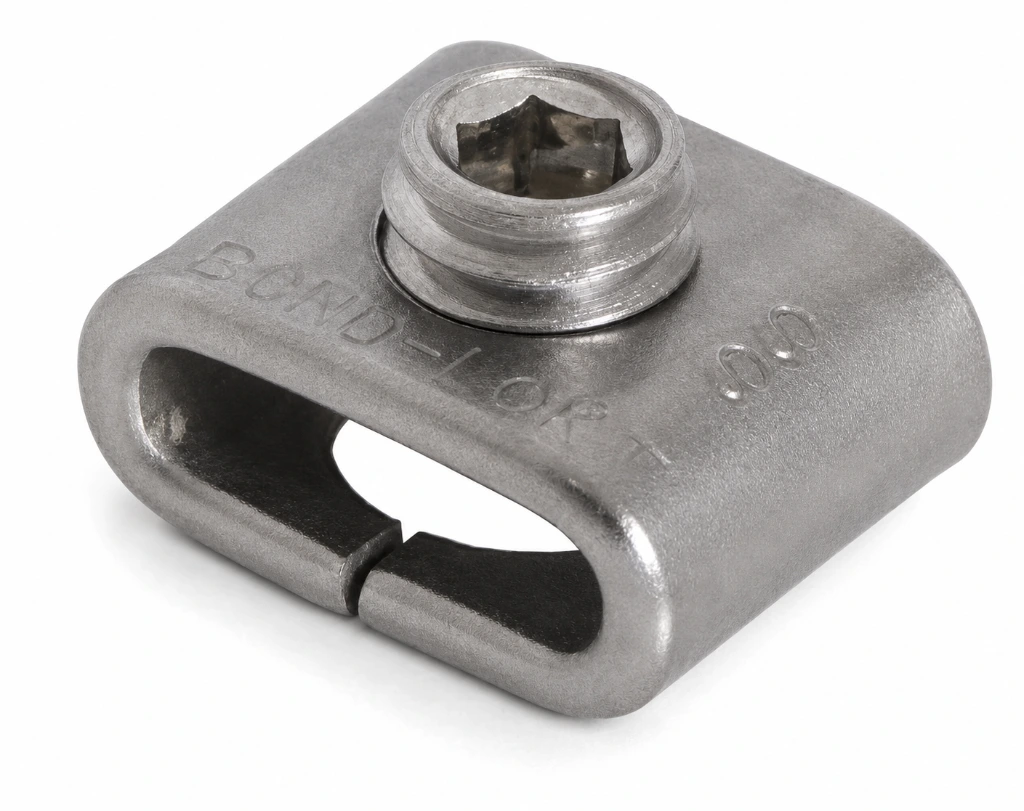

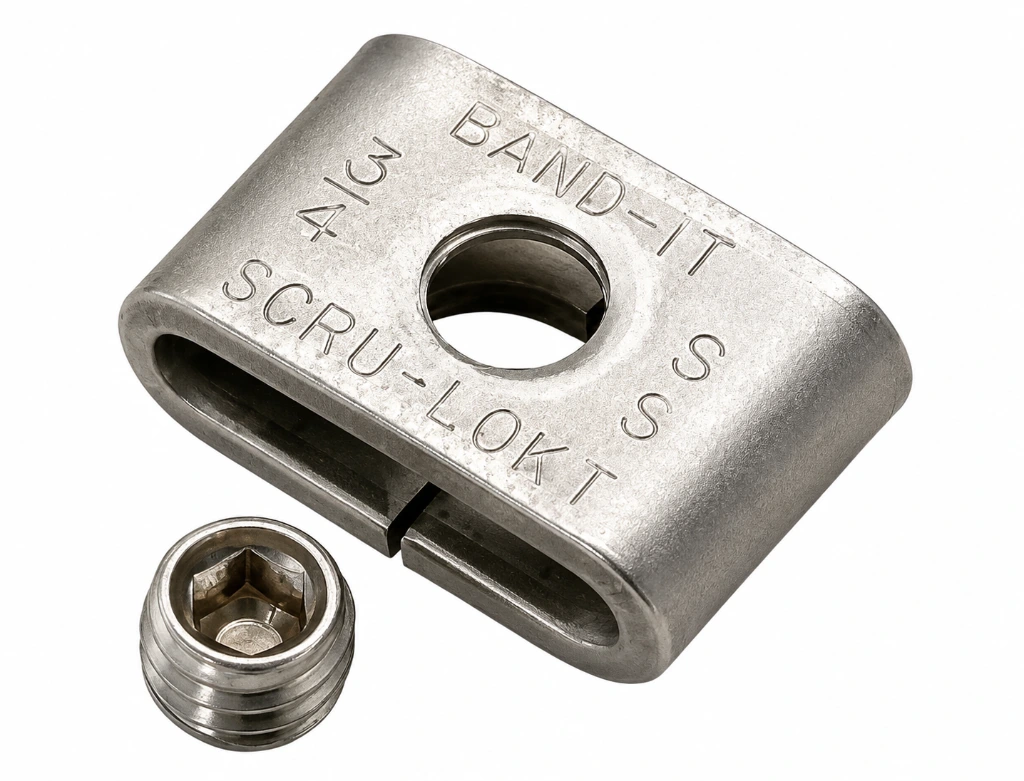

The BAND-IT® Scru-Lokt Buckle is a stainless-steel fastening component designed for secure, adjustable and retensionable steel banding applications.
- It provides a reliable fastening solution where clamps may need to be adjusted or temporarily installed.
- Designed for single- or double-wrapped band configurations, the buckle uses a set screw tightened with the supplied hex key to securely lock the band in place while allowing adjustment when required.
- Arabian Arrow Supply & Services Company Limited (ARACO) supplies genuine BAND-IT® products in Saudi Arabia as an authorized BAND-IT® distributor.
- The Scru-Lokt Buckle is suitable for industrial banding, temporary clamping, maintenance, infrastructure and general fastening applications.
Scru-Lokt Buckle Specifications
| Part No. | Material | Width | Width (mm) | Package Qty. | Weight |
|---|---|---|---|---|---|
| C72099 | 301 SS 1/4 Hard | 1/4" | 6.4 | 50/Box | 0.3 lb / 0.1 kg |
| C72299 | 301 SS 1/4 Hard | 3/8" | 9.6 | 50/Box | 0.5 lb / 0.2 kg |
| C72499 | 301 SS 1/4 Hard | 1/2" | 12.7 | 25/Box | 0.5 lb / 0.2 kg |
| C72599 | 201 SS | 5/8" | 15.8 | 25/Box | 0.8 lb / 0.4 kg |
| C72699 | 201 SS | 3/4" | 19.1 | 25/Box | 0.9 lb / 0.4 kg |
Key Features
Adjustable & Retensionable
Designed for applications where the clamp needs to be adjusted or retensioned after installation, providing greater flexibility than a permanently fixed fastening arrangement.
Secure Screw-Locking Design
The buckle is locked by tightening the integrated set screw with the supplied hex key, providing a secure mechanical fastening method
Suitable for Temporary Clamping
Ideal when an adjustable or temporary clamp is required, allowing the fastening to be retensioned when necessary.
Stainless-Steel Construction
The available models use 301 stainless steel 1/4 Hard or 201 stainless steel, depending on the part number. The 301 SS 1/4 Hard versions offer good resistance to oxidation and many moderate corrosive agents.
Single or Double Wrap Capability
The Scru-Lokt Buckle can accommodate single- and double-wrapped band configurations, providing flexibility for different fastening requirements.
Multiple Width Options
Available for standard band widths from 1/4 in. (6.4 mm) to 3/4 in. (19.1 mm), allowing selection according to the required banding size.
Technical Specifications of Scru-Lokt Buckle BAND-IT
| Specification | Details |
|---|---|
| Product | BAND-IT® Scru-Lokt Buckle, Stainless Steel |
| Buckle Type | Scru-Lokt Screw-Locking Buckle |
| Available Widths | 1/4", 3/8", 1/2", 5/8", 3/4" |
| Available Widths (Metric) | 6.4, 9.6, 12.7, 15.8, 19.1 mm |
| Configuration | Single or double wrapped band |
| Locking Method | Set screw tightened with hex key |

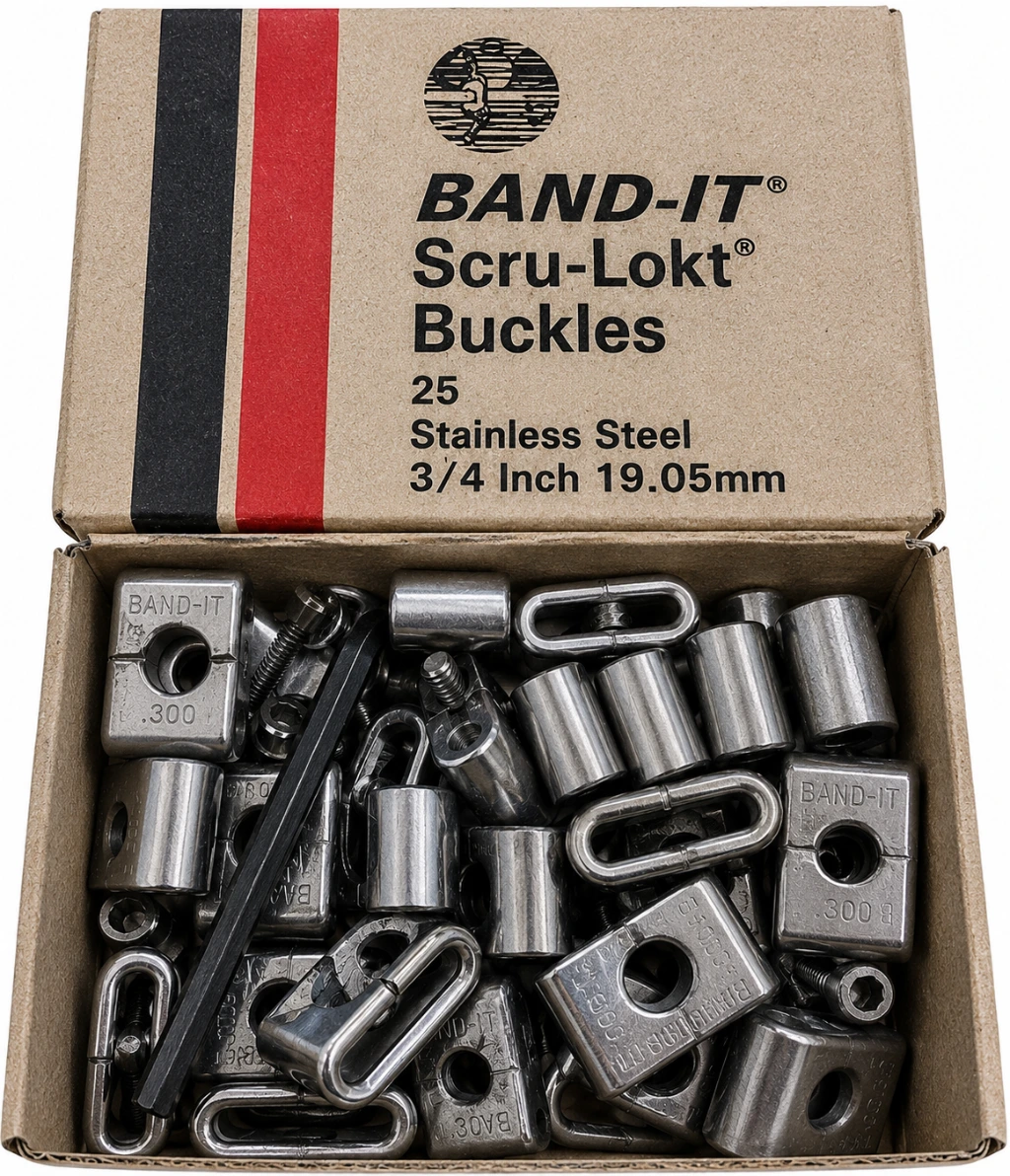

| Packaging | 50/Box or 25/Box depending on part number |
| Application Tool | Hex Key |
Applications and Uses
General Industrial Banding
Used for general-purpose banding and fastening applications where a secure and adjustable stainless-steel buckle is required.
Temporary Clamping
Suitable for temporary clamp installations where the fastening may need to be loosened, adjusted or retensioned during maintenance or installation work.
Maintenance & Repair
Useful in maintenance environments where fastening systems may require periodic adjustment or retensioning rather than a one-time permanent installation.
Equipment & Component Securing
Can be used with suitable steel banding to secure components, equipment or assemblies where BAND-IT® band-and-buckle fastening is appropriate.
Infrastructure & Industrial Projects
Suitable for industrial and infrastructure applications using stainless-steel banding systems, including utilities, power, construction, offshore, oil & gas, petrochemical, and infrastructure sectors.
Cable & General Bundling
Can be incorporated into suitable BAND-IT® banding arrangements for bundling and securing applications where adjustable steel banding is preferred.
How to use BAND-IT Scru-Lokt Buckle
Select the Correct Band & Buckle
Choose a Scru-Lokt Buckle that matches the width of the BAND-IT® steel banding being used. The Scru-Lokt range is available from 1/4" to 3/4" (6.4–19.1 mm).
Wrap the Band Around the Object

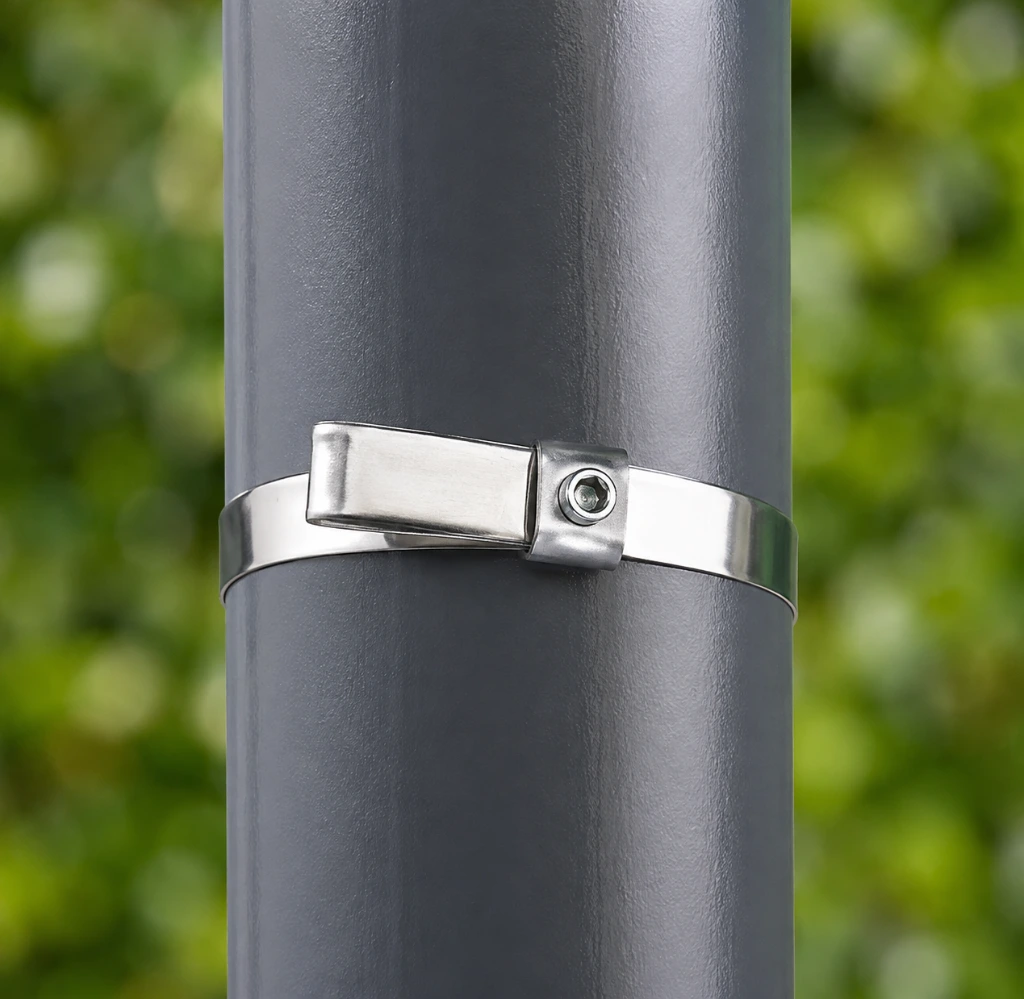

Position the stainless steel band around the component, pipe, cable bundle, pole or other item being secured. The Scru-Lokt system can be used with single- or double-wrapped band configurations.
Position the Buckle
Feed the band through the Scru-Lokt Buckle and position the buckle at the required location. Use a suitable BAND-IT® banding tool to apply and tension the band.
Apply the Required Tension
Using the appropriate BAND-IT® tool, tension the band securely around the object. Unlike a standard BAND-IT clamp, the tool is not rolled over when using the Scru-Lokt buckle.
Secure the Set Screw
Once the required tension has been applied, insert the set screw into the Scru-Lokt Buckle and tighten it using the hex key supplied with the buckle package. This locks the band securely in place.
Leave a Band Stub for Retensioning
If the clamp may need to be retensioned or reused, BAND-IT recommends leaving approximately a 3-inch (7.5 cm) band stub so that the tool can grip the band again later. The remaining stub can be folded underneath the clamp if required.
Check the Finished Clamp
After tightening the set screw, inspect the completed clamp to ensure the buckle and band are properly positioned and securely fastened. The Scru-Lokt design allows the clamp to be retensioned when required, making it particularly useful for adjustable or temporary clamping applications.
Frequently asked questions
Here are some common questions about
Scru-Lokt Buckle BAND-IT
The BAND-IT® Scru-Lokt Buckle is a stainless-steel buckle designed for use with steel banding where secure, adjustable and retensionable fastening is required.
Yes. It is specifically designed for applications requiring an adjustable or temporary clamp, and the fastening can be retensioned when required.
The buckle is locked by tightening its set screw with a hex key, which is provided with the package.
The published range includes 301 stainless steel 1/4 Hard for C72099, C72299 and C72499, and 201 stainless steel for C72599 and C72699.
Scru-Lokt Buckles are available for 1/4", 3/8", 1/2", 5/8" and 3/4" band widths, equivalent to approximately 6.4 to 19.1 mm.
Yes. The buckle can hold both single- and double-wrapped band configurations.
They are designed for general-use banding, adjustable clamping and temporary clamping applications where steel banding is appropriate.
Arabian Arrow Supply & Services Company Limited (ARACO) is an authorized distributor and stockist of BAND-IT® products in Saudi Arabia.
Yes. Its adjustable screw-locking design and stainless-steel construction make it suitable for a range of industrial banding and clamping applications, subject to selecting the correct buckle and band specifications for the application.
Secure Your Banding with BAND-IT® Scru-Lokt
Get reliable, adjustable and retensionable banding with genuine BAND-IT® Scru-Lokt Buckles.
