INCA FIRESTOP | FIREPROOF DUCT WRAP FB01-15
INCA Firestop | Fireproof Duct Wrap FB01-15
Flexible Ceramic Fibre Fireproof Duct Wrap

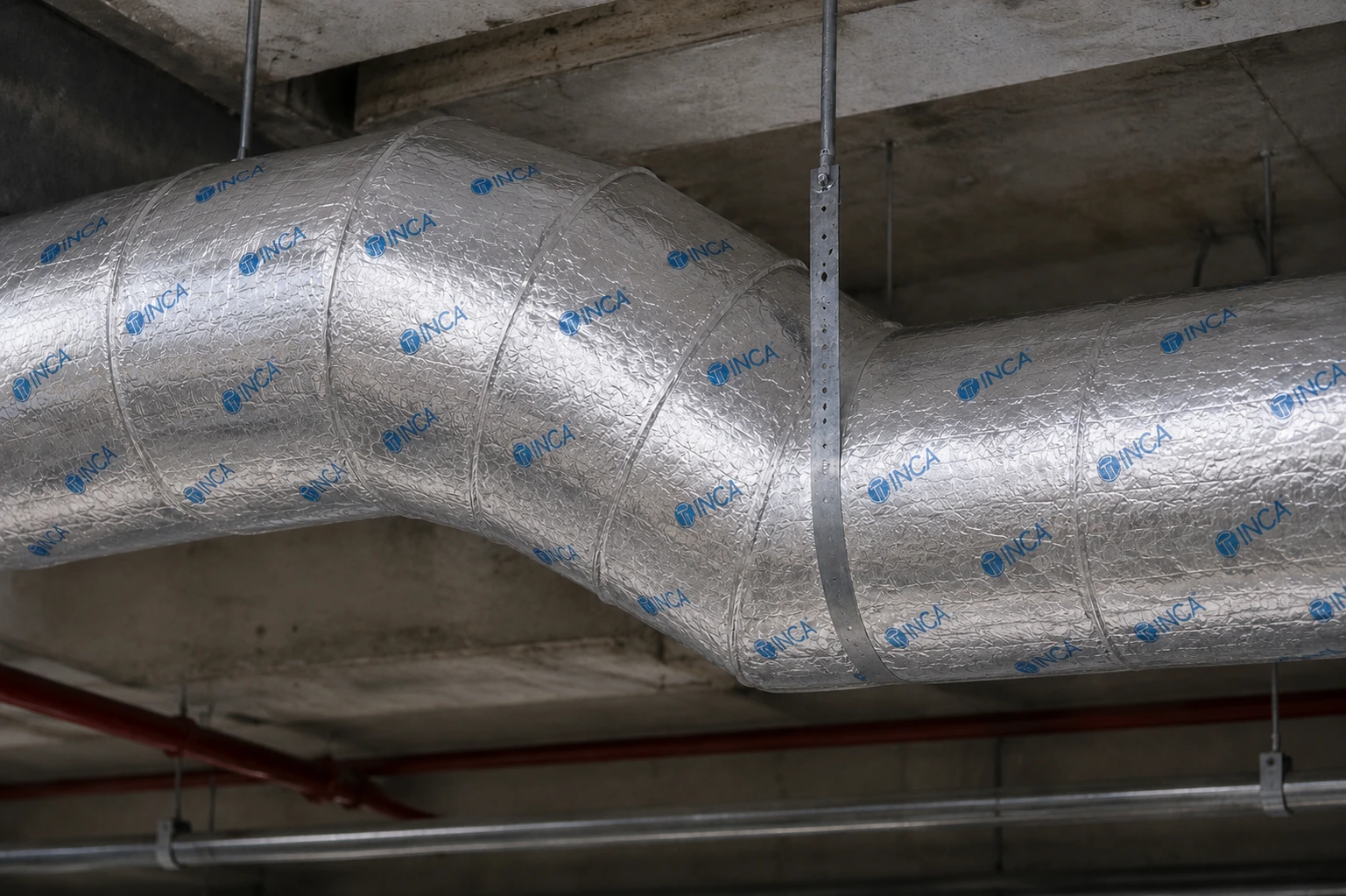

- INCA Fireproof Duct Wrap FB01-15 is a high-performance ceramic fibre fire-resistant blanket designed to provide passive fire protection for HVAC ventilation ducts.
- Encapsulated in scrim-reinforced aluminium foil, it helps prevent the spread of fire, smoke, and heat while delivering excellent thermal insulation.
- Its lightweight, flexible, and non-asbestos construction allows for quick installation around rectangular and circular ductwork, making it ideal for commercial buildings, industrial facilities, data centres, hospitals, airports, and infrastructure projects.
- ARACO (Arabian Arrow Supply & Services Co. Ltd.) is an authorized INCA Fireproof Duct Wrap supplier and distributor in Saudi Arabia, providing certified firestop duct wrap solutions for reliable passive fire protection across the Kingdom.
Key Features
Up to 3-Hour Fire Resistance
Tested to provide up to 3 hours of certified fire protection for ducts and cable tray applications.
Flexible and Lightweight
Easily wraps around ducts, conduits, and cable trays, simplifying installation in confined spaces
Non-Combustible Fire Protection
Creates a durable fire-resistant barrier that helps reduce flame spread and smoke generation.
Ceramic Fibre Construction
Manufactured from high-performance ceramic fibre for outstanding thermal insulation and fire resistance.
Scrim-Reinforced Aluminium Foil
Protective foil encapsulation improves durability while enhancing thermal performance.
Non-Asbestos Material
Made without asbestos, providing a safer and environmentally responsible fire protection solution.
Certified Fire Performance
Tested to UL 1479 (3-Hour T, F & L Rating), ASTM E662, and CNS 14514 (3-Hour Class A & B) for proven passive fire protection.
Specifications of INCA Firestop | Fireproof Duct Wrap
| Specification | Value |
|---|---|
| Thickness | 13 mm |
| Width | 600 mm |
| Length | 7200 mm (Roll) |
| Maximum Temperature | 1260°C (2300°F) |
| Density | 128 kg/m³ |
| Tensile Strength | 1.05 kg/cm² |
| Packaging | 2 Rolls/Carton |
Applications

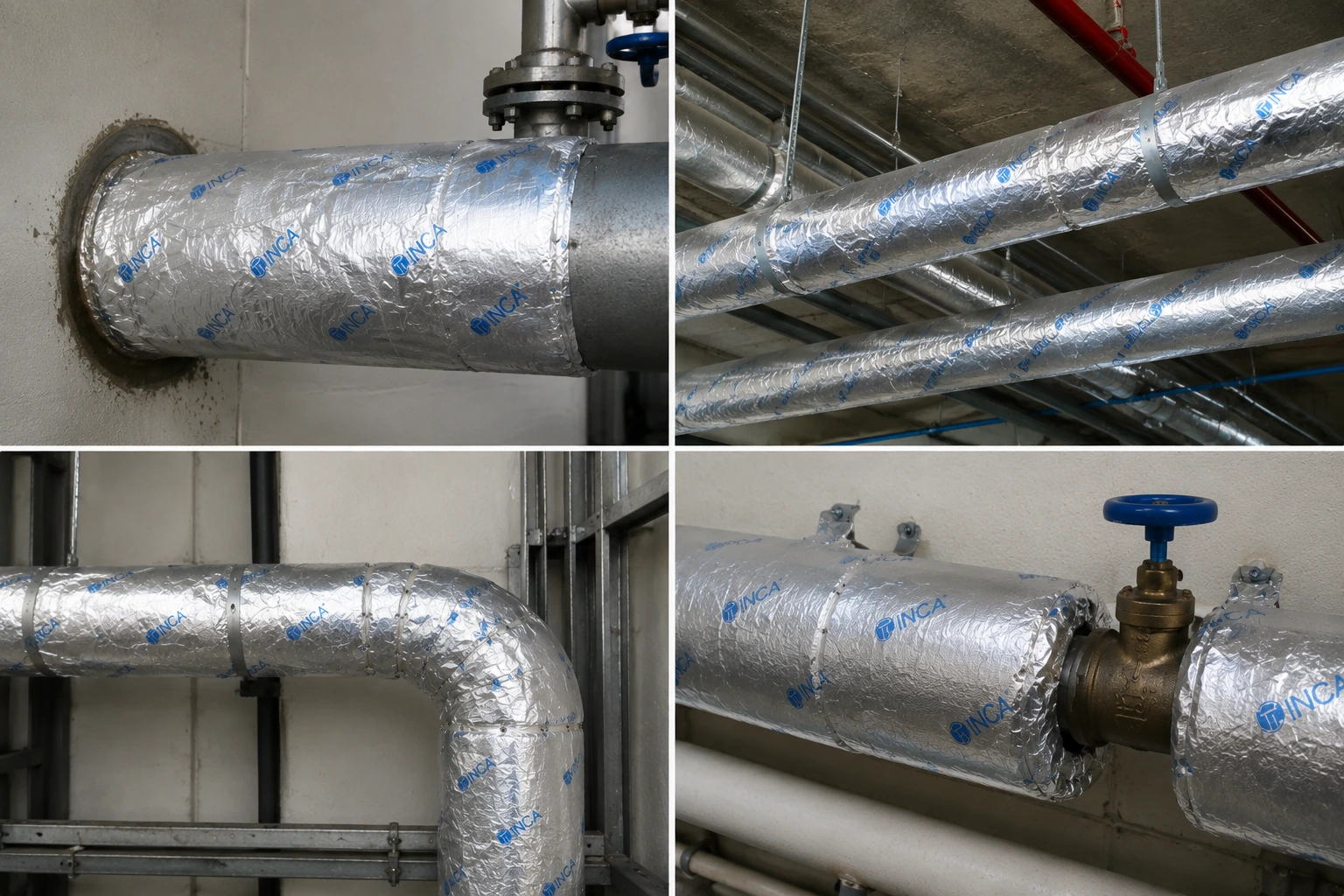

Ventilation Duct Protection
Wraps ventilation ducts to help maintain fire compartmentation and reduce the spread of fire through duct systems
Cable Tray Protection
Provides a fire-resistant enclosure for cable trays, protecting critical power, control, and communication cables during a fire.
Metal Conduit Protection
Insulates metal conduits exposed to fire, helping maintain system integrity and reducing heat transfer.
Commercial Buildings
Suitable for offices, shopping malls, hotels, educational institutions, and other commercial developments requiring passive fire protection.
Industrial Facilities
Ideal for manufacturing plants, warehouses, refineries, and processing facilities where fire protection is essential.
Critical Infrastructure
Used in data centres, hospitals, airports, power plants, and oil & gas facilities to safeguard critical services and maintain operational safety.
Request a Quote Now
Tell us your requirements and receive competitive pricing with fast delivery across the Kingdom.
