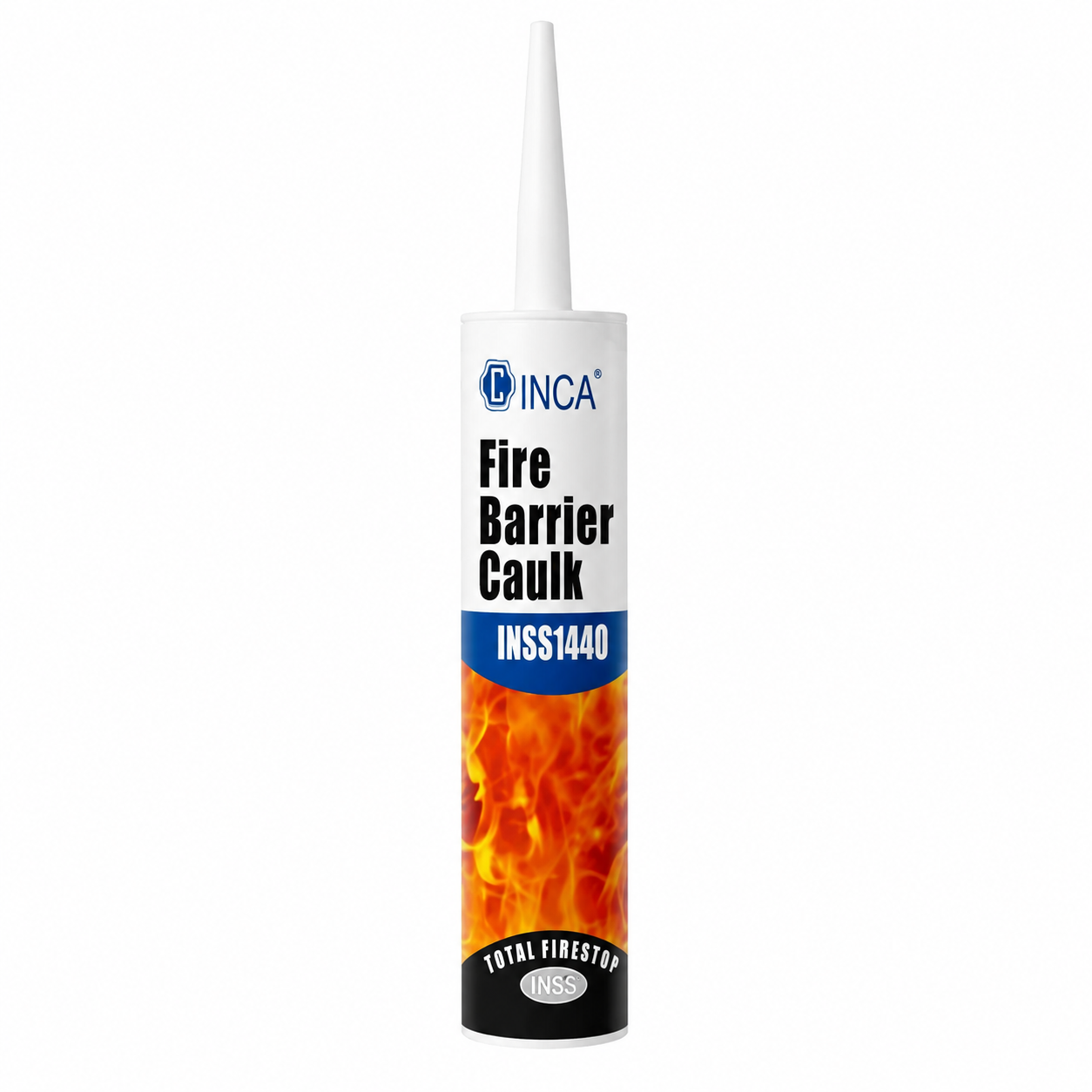

INCA-INSS1440 Fire Barrier Caulk | Firestop
INCA INSS1440 Firestop
High-Performance Acrylic Firestop Sealant
INSS1440 Fire Barrier Caulk is a high-performance, acrylic-based firestop sealant designed to seal gaps around cable penetrations, pipes, fire-rated walls, floors, ceilings, and fire doors.
- A high-performance, acrylic-based firestop sealant designed to seal gaps around cable penetrations, metal pipes, conduits, fire-rated walls, floors, ceilings, and fire doors. It helps prevent the spread of fire, smoke, and hot gases, maintaining the integrity of fire-rated assemblies for up to 3 hours.
- This one-component, gun-grade sealant is water-based, non-sag, and ready to use, ensuring quick and easy installation on both vertical and horizontal surfaces. During a fire, it forms a durable insulating char that enhances fire protection.
- Free from halogens and asbestos, it is also paintable after curing and suitable for a wide range of commercial and industrial applications. INSS1440 maintains its firestop performance even in high-radiation environments, making it ideal for specialized facilities.
- ARACO (Arabian Arrow Supply and Services Co. Ltd.) is an authorized distributor of INSS1440 Fire Barrier Caulk in Saudi Arabia, providing certified passive fire protection solutions for commercial buildings, industrial facilities, data centres, healthcare, oil & gas, power generation, and infrastructure projects.
Key Features
Up to 3-Hour Fire Resistance
Provides certified fire protection for up to 3 hours, helping maintain the integrity of fire-rated walls, floors, and penetration seals during a fire.
Water-Based, Non-Sag Formula
Water-based composition offers easy application on vertical and horizontal surfaces without sagging or running.
Protective Intumescent Char Formation
Expands and forms a durable insulating char when exposed to high temperatures, helping prevent the spread of fire and smoke.
Halogen-Free and Asbestos-Free
Manufactured without halogens or asbestos, making it a safer and environmentally friendly passive fire protection solution.
Paintable After Curing
Can be painted once fully cured, allowing a seamless finish that matches surrounding building surfaces.
Tested and Certified to International Standards
Complies with UL 1479, ULC S115, FM Approved, ASTM E84, ASTM E662, CNS 14514, and GB23864, ensuring proven fire performance and compliance with globally recognized fire safety standards.
Installation and Usage
Surface Preparation: Ensure surfaces are clean, dry, and free from debris and contaminants.
Application: Apply the caulk using a standard caulking gun. Smooth the sealant with a tool to ensure proper adhesion and a smooth finish.
Curing Time: Allow the caulk to cure according to the manufacturer’s instructions before exposing it to fire or radiation.
Performance Under Radiation
INSS1440’s ability to maintain its firestop function under intense radiation exposure (1×10^6 Gy) is a testament to its durability and reliability in extreme conditions.
This feature is particularly beneficial in industries where radiation is a significant concern, ensuring fire safety and compliance with stringent safety regulations.
INSS1440 Fire Barrier Caulk is a reliable and effective solution for firestopping needs, offering robust performance in standard and high-radiation environments. Its high fire rating and exceptional radiation resistance make it ideal for a wide range of applications, ensuring safety and compliance in critical infrastructure.
Specifications Summary
Base: Acrylic
Fire Rating: Up to 3 hours
Radiation Resistance: 1×10^6 Gy (1×10^8 rad)
Applications: Electrical and mechanical penetrations, wall and floor joints
Installation: Requires clean, dry surfaces; standard caulking gun for application
| Specification | Value |
|---|---|
| Density | 1.45 ± 0.1 g/cm³ |
| Tack-Free Time | Approx. 30 minutes |
| Full Cure Time | 7–21 days |
| Hardness (Fully Cured) | Shore A 20–40 |
| Expansion Rate | ≥ 3 times |
| VOC Content | < 50 g/L |
| STC Rating (ASTM E90) | 64 (Depending on construction type) |
| Storage Temperature | 10°C–30°C |
| Packaging | 310 ml/Tube (25 Tubes/Carton)20 fl. oz. Sausage (20 Sausages/Carton)1 Gallon/Pail5 Gallon/Pail |
| Shelf Life | 2 Years |
Technical Specification of INCA INSS1440 Fire Barrier Caulk | Firestop
INSS1440 is versatile
Applications
Electrical Penetrations:
Sealing gaps around cables and conduits to prevent fire spread.
Mechanical Penetrations:
Ideal for sealing around pipes and ductwork
Wall and Floor Joints:
Ensuring firestopping in expansion joints and other structural gaps.
Fire-rated door perimeter sealing:
Fills gaps around fire-rated door frames to maintain the integrity and performance of fire doors during a fire.
Commercial, Industrial, and Infrastructure Projects
Suitable for offices, factories, warehouses, airports, educational facilities, and other projects requiring certified passive fire protection.
Data Centres, Hospitals, Power Plants, and Oil & Gas Facilities
Ideal for critical facilities where reliable firestopping is essential to protect vital equipment, services, and occupants while ensuring compliance with fire safety standards.
Benefits of INCA Firestop
Acrylic-Based Composition
The acrylic base ensures strong adhesion to a wide range of substrates.
It provides flexibility, allowing for movement within the sealed joints without compromising the seal’s integrity.
Fire Rating
INSS1440 offers a fire rating of up to 3 hours.
This means that in the event of a fire, the caulk can effectively prevent the spread of flames and smoke through sealed gaps for this duration, providing critical time for evacuation and fire response
Radiation Resistance
One of the standout features of INSS1440 is its resistance to high levels of neutron and gamma radiation. It can withstand exposure to 1×10^6 Gy (1×10^8 rad) without losing its firestop capabilities.
This makes it suitable for use in environments with high radiation levels, such as nuclear power plants and research facilities.
