BAND-IT Tensioning Tool KE922 in Saudi Arabia
The BAND-IT KE922 Tensioning Tool is a heavy-duty installation tool designed to deliver fast, accurate, and consistent tensioning of BAND-IT stainless steel banding systems. Its durable construction and easy operation ensure secure, professional installations in demanding industrial environments.
Arabian Arrow, an Authorized BAND-IT Distributor in Saudi Arabia, supplies genuine BAND-IT KE922 Tensioning Tool for reliable performance across electrical, telecommunications, oil & gas, marine, construction, and infrastructure applications.
- Heavy-duty and durable construction
- Fast and consistent band tensioning
- Secure and professional band installation
- Easy to operate with reduced installation time
- Compatible with BAND-IT stainless steel banding systems
- Ideal for industrial and commercial applications
Key Features
Heavy-Duty Construction
- Rugged design for long service life.
- Built to withstand harsh working environments.
- Resistant to wear during frequent use.
High-Tension Performance
- Delivers consistent and reliable band tension.
- Ensures secure and professional installations.
- Suitable for demanding industrial applications.
Easy Operation
- Simple and ergonomic handling.
- Reduces operator fatigue.
- Improves installation speed and productivity.
Precision Installation
- Provides accurate and uniform band tension.
- Helps achieve neat and consistent fastening.
- Supports high-quality installation standards.
Designed for BAND-IT Systems
-
Tensioning Tool is used to cut of Ball-lok ties and Multi-lok ties
- Ideal for professional cable management and fastening applications.

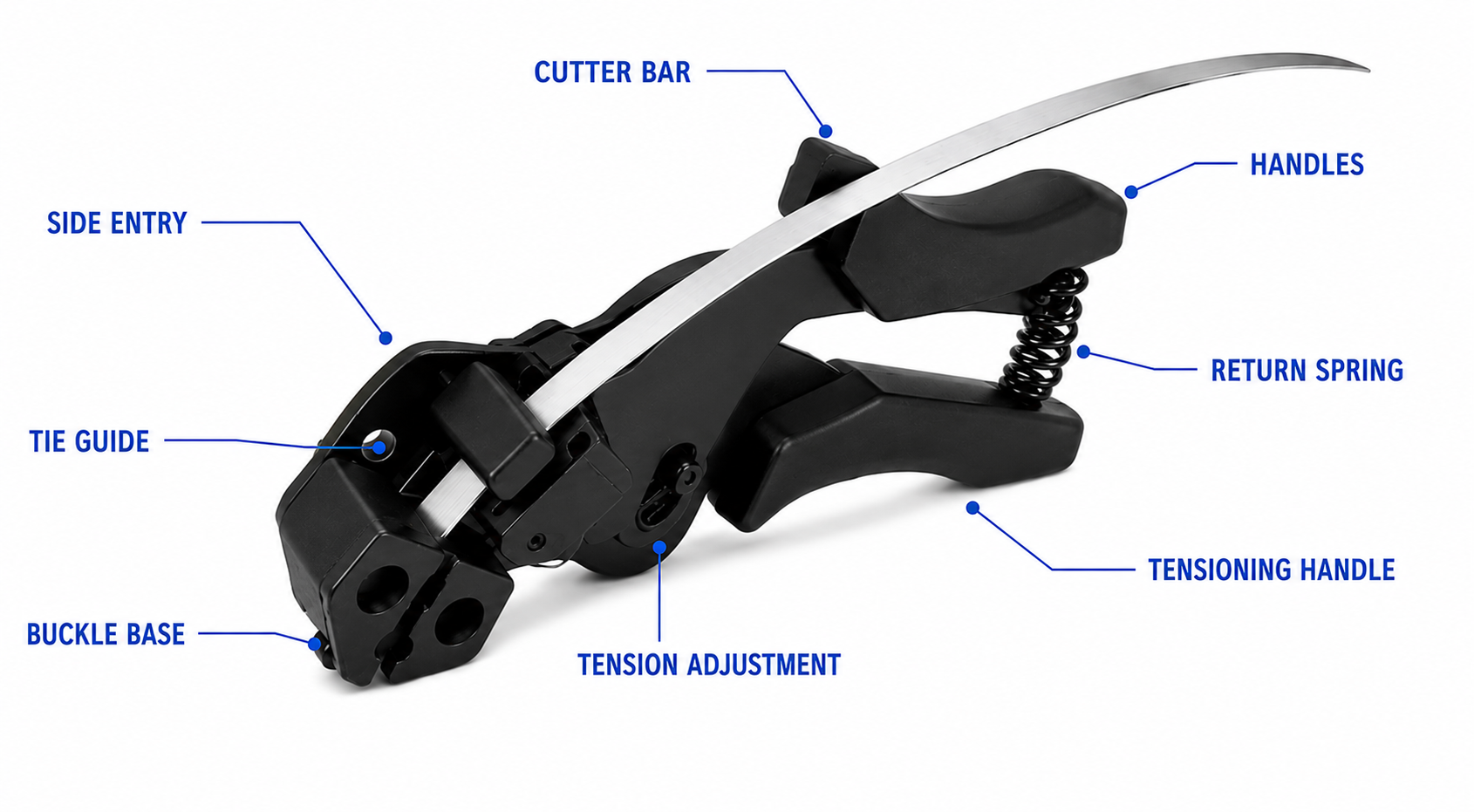

KE922 Tensioning Tool Diagram
Operating Instructions

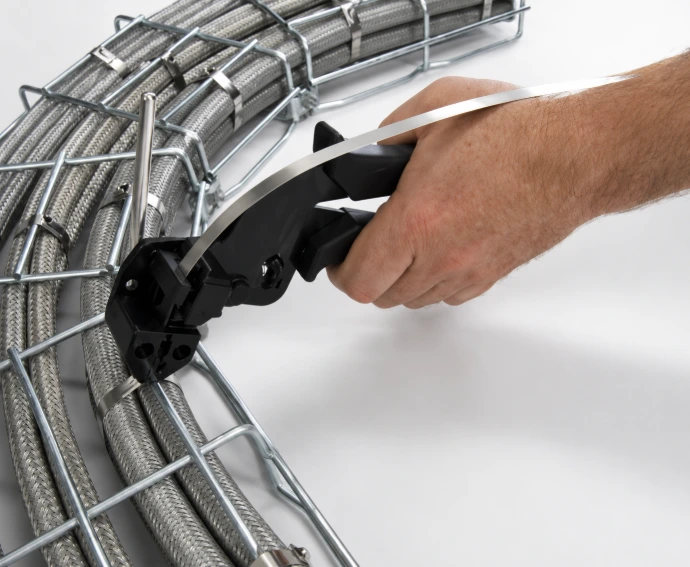

Step 3
Squeeze the handle to tighten the cable tie to the desired tension.

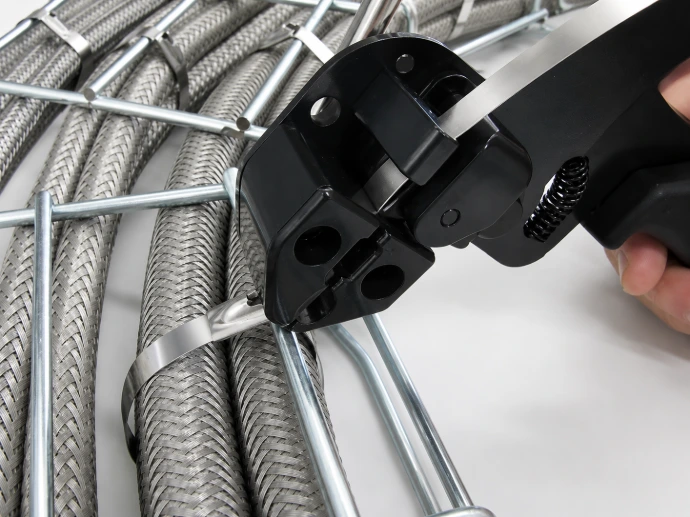

Step 2
Slide the tail into the side entry of the tool. Position the tool against the base of the buckle as shown.

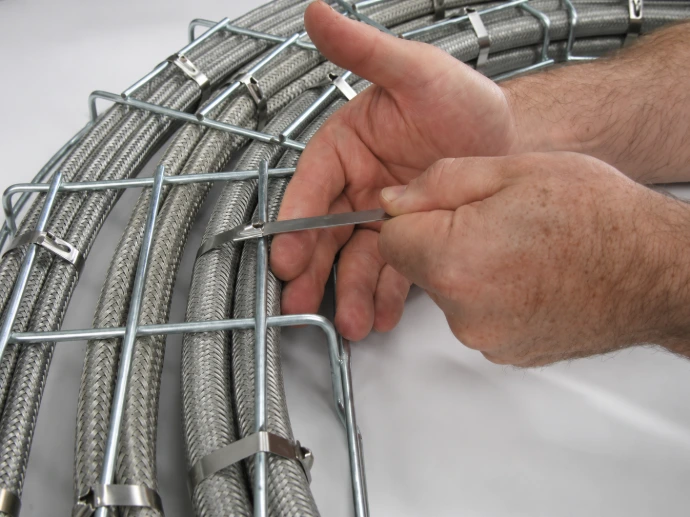

Step 1
Loop the cable tie around the bundle. Insert the tail into the buckle and pull it tight by hand.

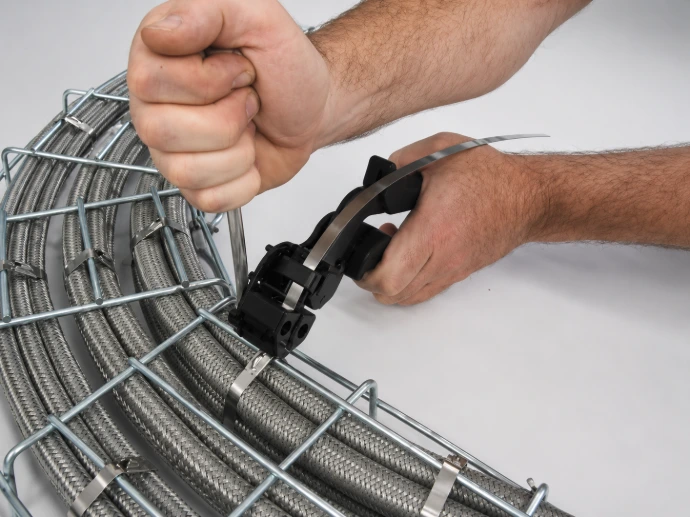

Step 4
Maintain the handle pressure and rotate the cutter bar upward to cut off the excess cable tie.

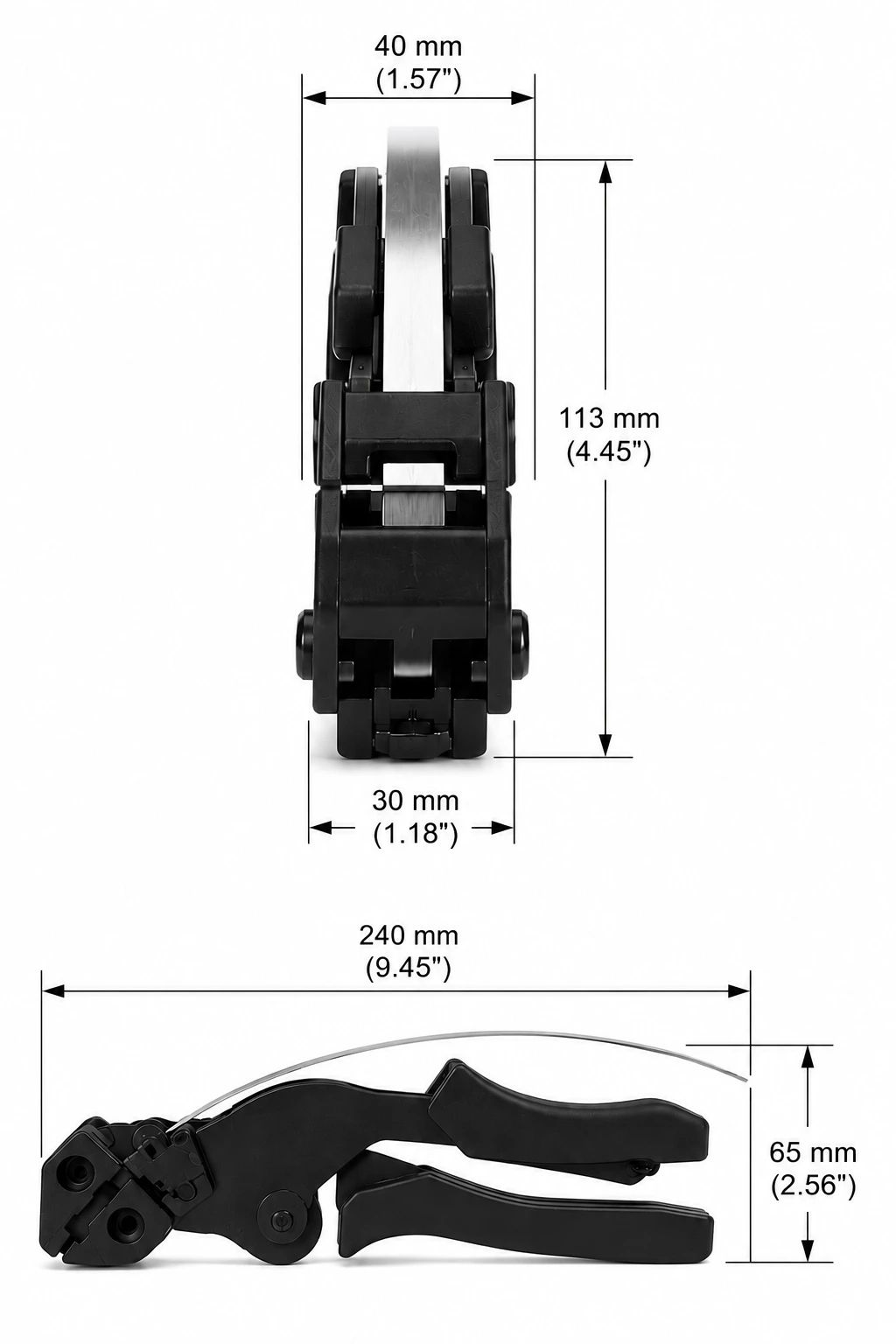

Technical specifications of KE922 Tensioning Tool
| Specification | Measurement |
|---|---|
| Maximum Tie Width | Up to 12 mm (0.47 in) |
| Maximum Tie Thickness | Up to 0.30 mm |
| Overall Length | 240 mm (9.45 in) |
| Overall Height | 65 mm (2.56 in) |
| Overall Width | 40 mm (1.57 in) |
| Head Width | 30 mm (1.18 in) |
| Head Height | 113 mm (4.45 in) |
| Weight | 520 g (1.15 lb) |
✽ What We Offer
Primary uses
Stainless Steel Banding
Designed to tension stainless steel banding systems quickly, securely, and with consistent results.
Cable & Conduit Fastening
Provides strong and reliable fastening for electrical cables, conduits, and wire bundles.
Pipe & Hose Clamping
Ensures secure attachment of pipes and hoses in industrial and commercial applications.
Sign & Plate Mounting
Installs identification plates, warning signs, and markers with a professional, long-lasting hold.
Equipment Installation
Ideal for mounting brackets, fixtures, and industrial equipment in demanding environments.
Heavy-Duty Bundling
Delivers durable, corrosion-resistant fastening for heavy-duty bundling and industrial maintenance tasks.
