C00169-STANDARD BANDING TOOL
| BAND-IT®
BAND-IT | C00169 Standard Banding Tool in Saudi Arabia

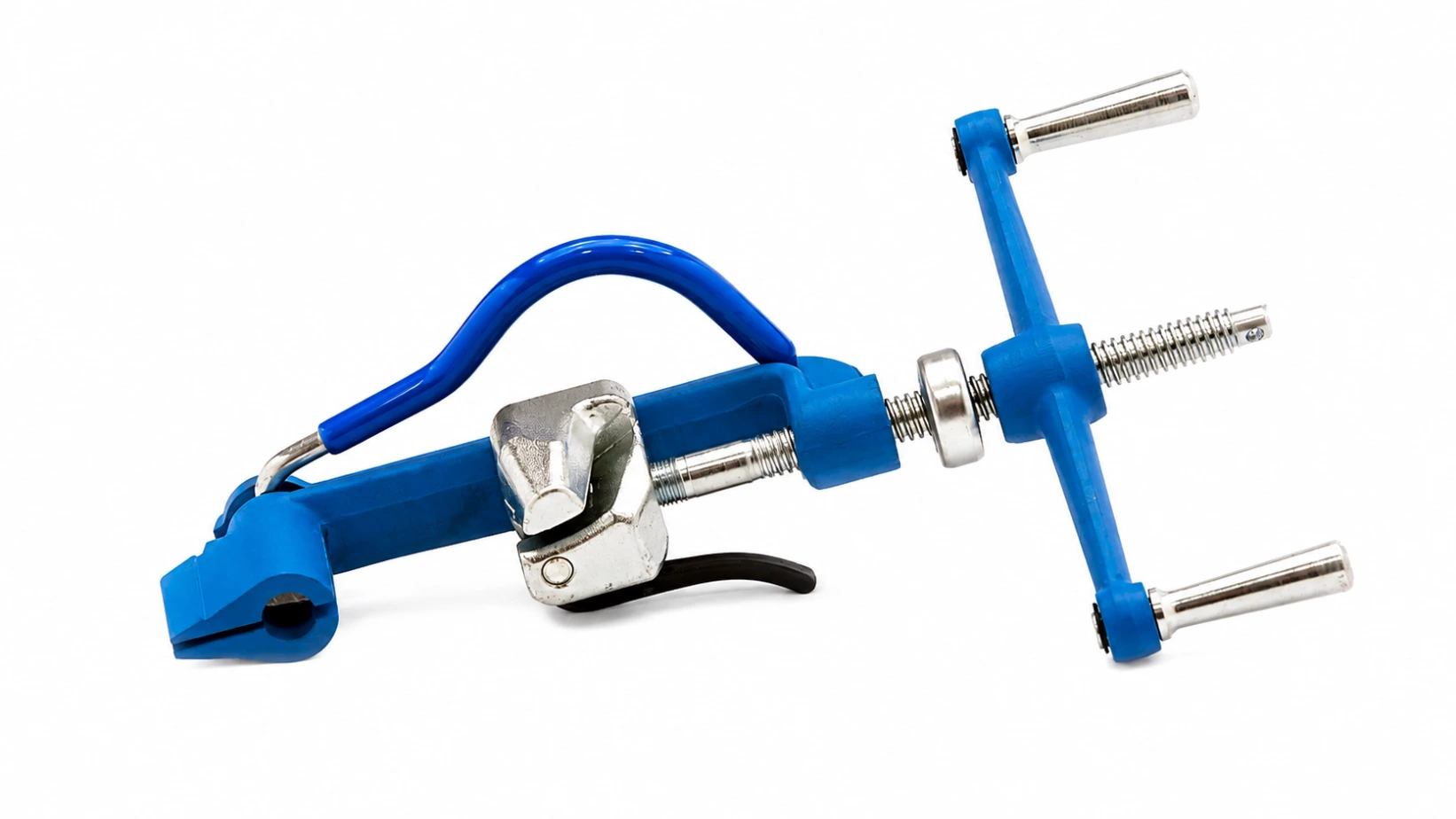

- The BAND-IT Standard Banding Tool C00169 is a professional-grade manual installation tool designed for the fast and secure installation of BAND-IT stainless steel band and buckle systems.
- Manufactured from drop-forged steel, the C00169 is built to withstand heavy industrial use while delivering consistent tensioning performance. It features a built-in cutter and a spring-loaded gripper lever, allowing users to tension and cut stainless steel band efficiently with a single tool.
- Supplied by Arabian Arrow Supply & Services in Saudi Arabia, this durable tool is trusted by contractors, maintenance teams, and industrial professionals for creating strong, reliable banding connections in demanding environments.
- It is compatible with BAND-IT Band & Buckle systems and BAND-FAST products, supporting band widths from 1/4 in. to 3/4 in. (6.35 mm to 19.05 mm) and thicknesses from 0.015 in. to 0.030 in.
Key Features
Heavy-Duty Drop-Forged Steel Construction
Built with durable drop-forged steel to withstand demanding industrial applications and provide long-lasting performance.
Integrated Band Cutter
Features a built-in cutter for clean, quick, and efficient trimming of stainless steel band after tensioning
Spring-Loaded Gripper Lever
Ensures smooth band loading, secure gripping, and easier operation during installation.
Compatible with BAND-IT® Systems
Engineered for use with BAND-IT® Band & Buckle and BAND-FAST® fastening systems.
Consistent Band Tension
Provides reliable and uniform tension for secure, professional-quality band installations.
Manual, Power-Free Operation
Operates without electricity or batteries, making it ideal for on-site and remote industrial applications.

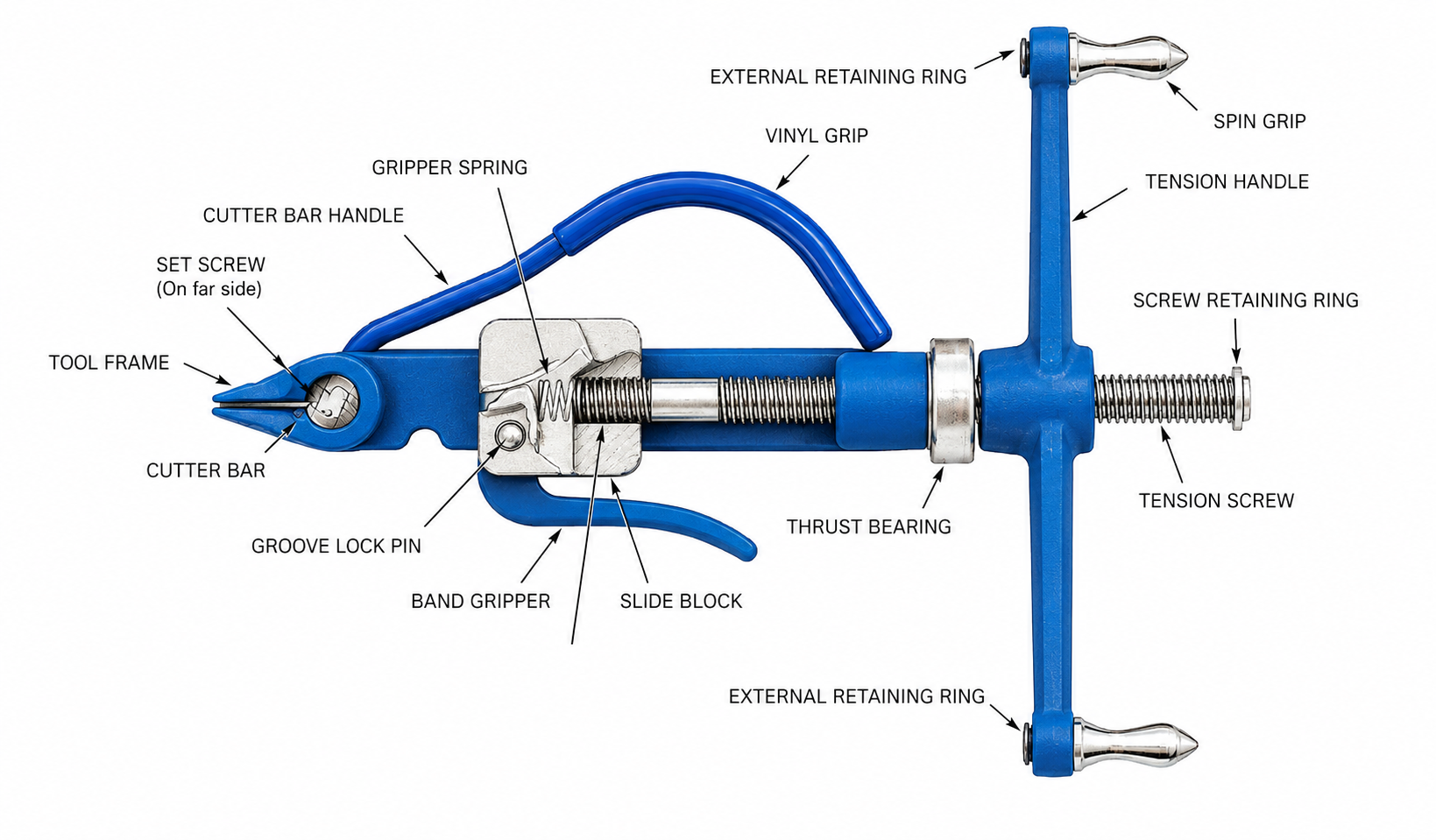

Standard Banding Tool Diagram

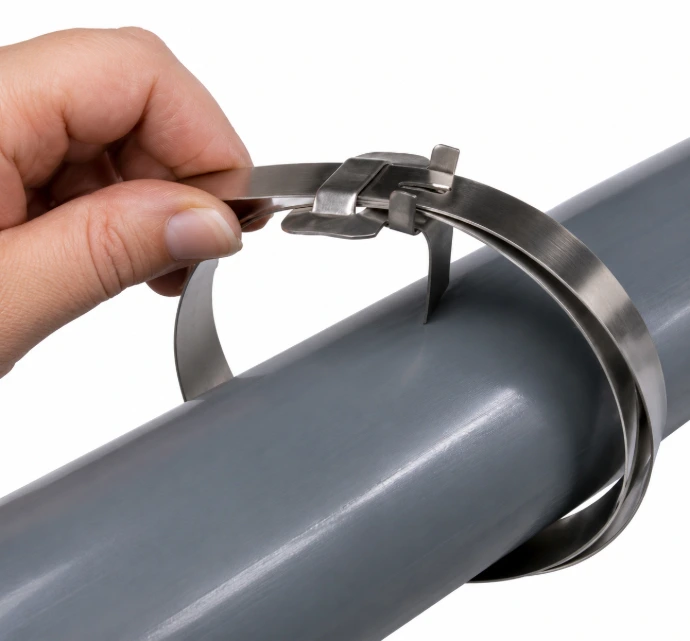

2. Continue band around object once more and again through buckle.
Double banding develops a great deal more radial compression than single banding.
Bend end of band under buckle.

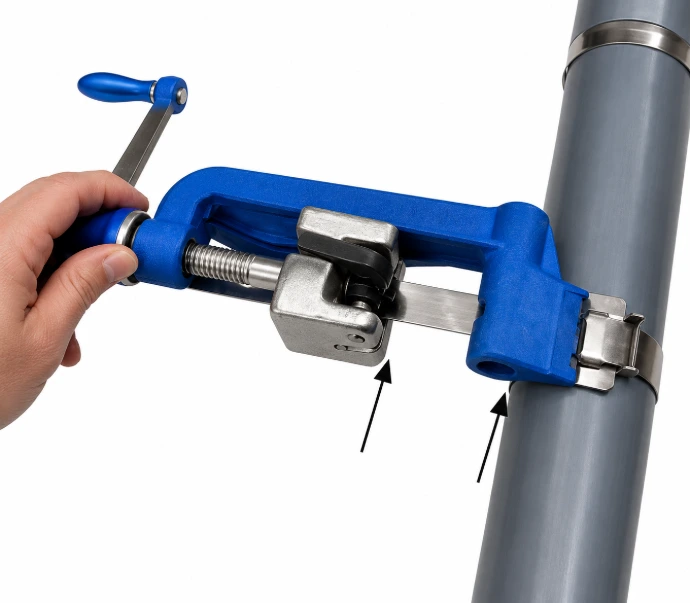

3. Place band in opening of tool nose and gripper block. Move into slot as far as possible, to avoid buckle sliding into tool nose.
Tighten band clamp by turning the tension handle clockwise while holding band gripper tight against band. NOTE: The spring load of the band gripper is not intended to secure and prevent band from slipping during tension process.
Operating Instructions of C00169 Standard Banding Tool

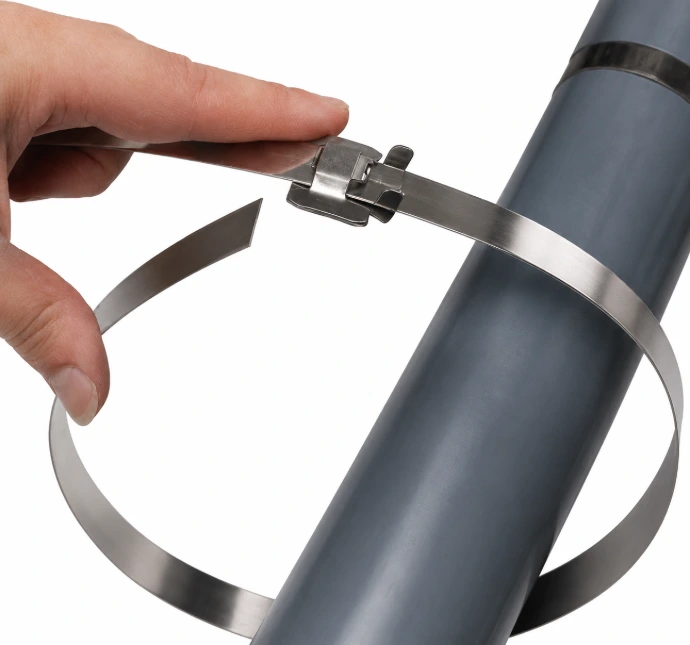

1. Band may be used from bulk roll as this completely eliminates waste of band. Slide buckle on band as shown, bringing end of band around object to be clamped and again through buckle.
NOTE: The tension screw thread should be lubricated regularly.

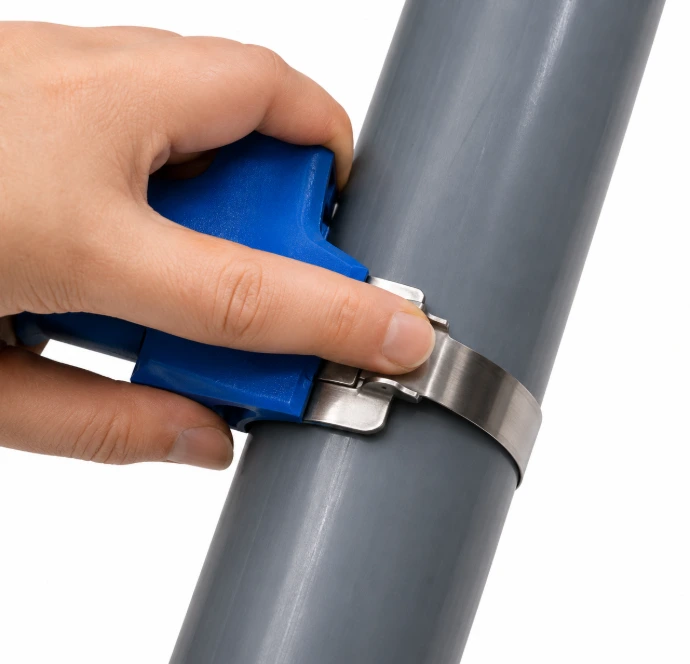

4. Place finger on BAND-IT Band at buckle bridge while tensioning with tool handle. When you feel BAND-IT Band stop moving through buckle as you are turning handle, maximum pressure is being exerted by the BAND-IT Band around object being clamped.
Stop turning handle.

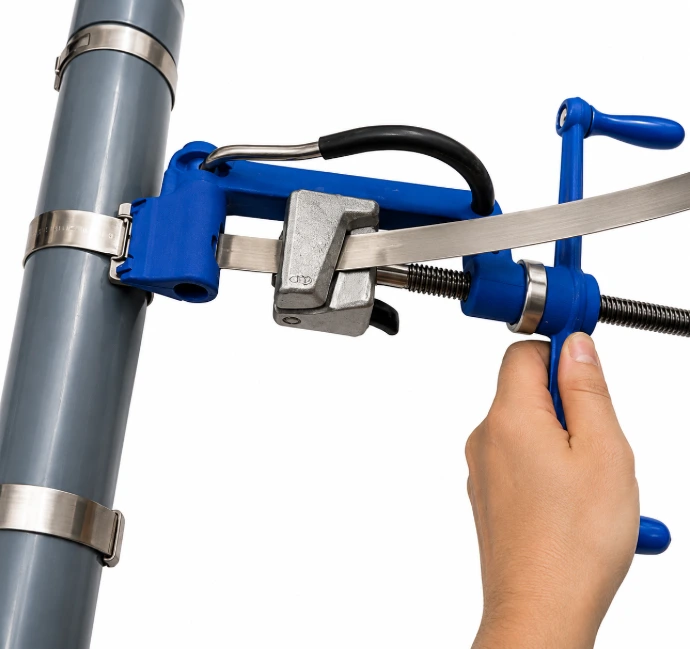

5. Roll tool over buckle, backing off with tension handle throughout entire rolling operation.
Failure to back off with tension handle throughout entire course of roll-over may result in breaking of band.
There is no loss of tension as band released is used up in the bend.

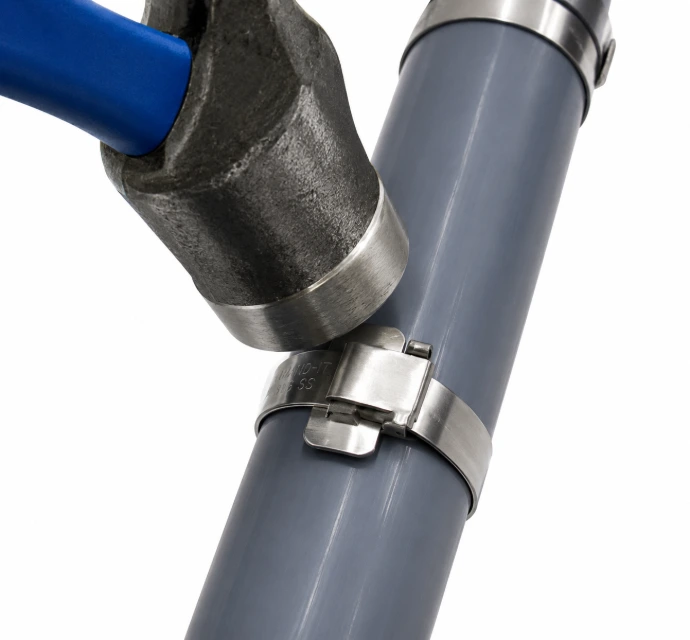

8. Hammer down buckle ears to hold band stub in place to complete BAND-IT clamp.

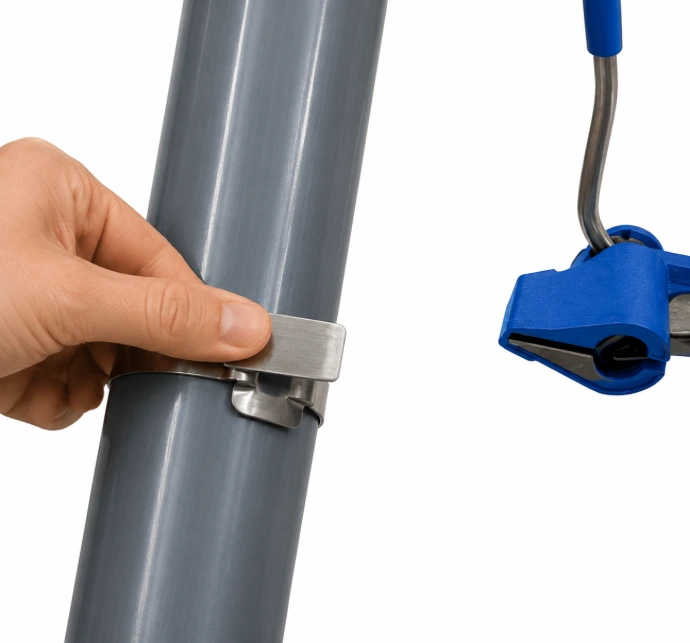

7.Remove tool, holding stub of band down with thumb.

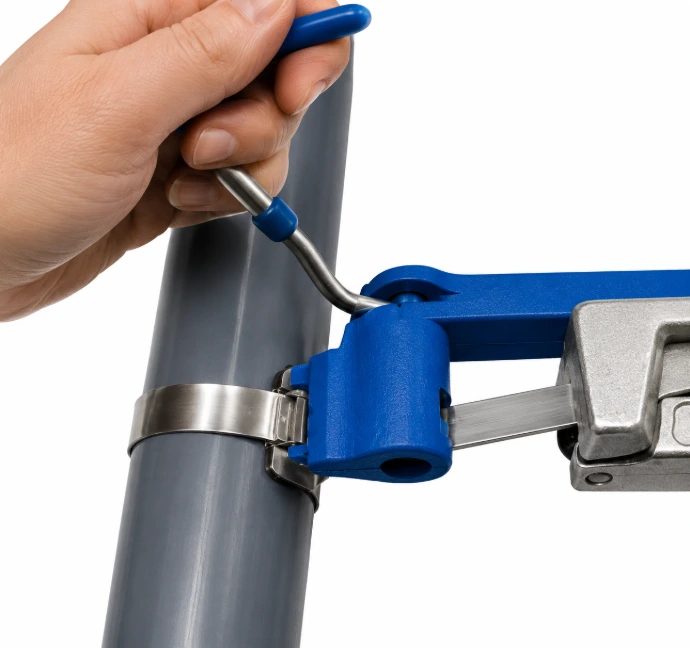

6. Pull cutting handle to cut the band.
✽ What We Offer
Applications and Primary uses of Standard Banding Tool
Pipe, Cable & Conduit Banding
Installs stainless steel banding securely around pipes, cables, conduits, and hoses.
Sign & Pole Mounting
Secures traffic signs, utility equipment, and other fixtures to poles and posts.
Electrical Telecommunications Installations
Fastens cable management systems in electrical, communication, and networking projects.
Industrial Plant Maintenance
Used in oil & gas, petrochemical, power generation, and heavy industrial facilities.
Marine & Infrastructure Applications
Marine, offshore, water treatment, transportation, and infrastructure maintenance.
General Industrial Fastening
Provides strong, corrosion-resistant stainless steel band installations for a wide range of industrial applications.
